Air transportation safety investigation report A21O0030
Unintentional gear-up landing on runway
Province of Ontario, Ministry of Northern Development, Mines, Natural Resources and Forestry
Canadair CL-215-6B11 (Series CL-415), C-GOGH
Sault Ste. Marie Airport, Ontario
The Transportation Safety Board of Canada (TSB) investigated this occurrence for the purpose of advancing transportation safety. It is not the function of the Board to assign fault or determine civil or criminal liability. This report is not created for use in the context of legal, disciplinary or other proceedings. See Ownership and use of content.
History of the flight
At 1121Footnote 1 on 02 May 2021, the Province of Ontario, Ministry of Northern Development, Mines, Natural Resources and Forestry (OMNRF)Footnote 2 CL-215-6B11 (Series CL-415) aircraft (registration C-GOGH, serial number 2034), departed from Sault Ste. Marie Airport (CYAM), Ontario, on a recurrent training flight with 2 pilots on board. The instructor pilot was seated in the left seat and was the pilot monitoring (PM), while the pilot receiving training was seated in the right seat and was the pilot flying (PF). Before arriving at the aircraft, and once again before starting the engines, the PM briefed the exercises to be flown and the order in which they would be accomplished. Each of the exercises had been practised by the occurrence PF in the OMNRF CL-415 flight simulator in March 2021.
The flight proceeded as briefed, and the aircraft returned to CYAM at approximately 1215 to conduct 3 planned circuits on Runway 12. The final circuit was to include a flapless approach and full-stop landing.
During the final circuit, while the aircraft was approximately mid-downwind, the PF called for Flaps 10 as he would during a normal circuit. The PM reminded him that they were practising a flapless landing and did not extend the flaps. As the PF began to turn for the base leg, he called for the GEAR DOWN, LANDING CHECKS checklist. Although this was the typical location for the GEAR DOWN, LANDING CHECKS call during a normal visual approach, the PM advised the PF to extend the downwind to arrange for a longer final approach. The PF abandoned the turn for the base leg as instructed and flew an extended downwind leg; the landing gear was not selected down by the PM, who began a verbal instruction explaining the method of calculating the appropriate approach path for a flapless landing. While continuing his explanation, the PM told the PF when to make the base turn and there was no subsequent call for the GEAR DOWN, LANDING CHECKS checklist. The approach continued on a typical profile for the flapless configuration. The landing gear aural warning did not activate during the approach given the flapless configuration and throttle lever positions.

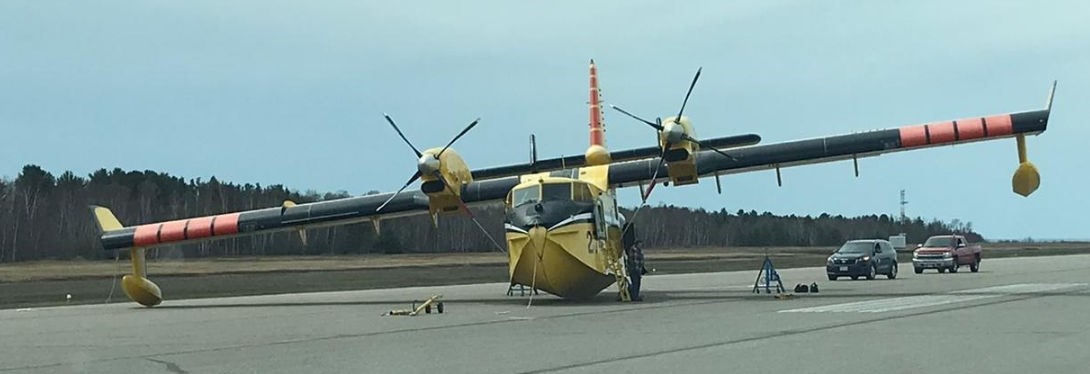

At approximately 1228, the aircraft landed on the centreline of Runway 12 with the landing gear retracted. The aircraft came to a stop on the runway surface with the right wingtip float resting on the ground (Figure 1). There was significant damage to the belly of the aircraft and minor damage to each wingtip float.
Flight crew, aircraft, and weather information
The investigation determined that the pilots were certified and qualified for the flight in accordance with existing regulations. No deficiencies were noted with respect to the certification, equipment, or maintenance of the aircraft, which all followed existing regulations and approved procedures. The flight occurred in daylight visual meteorological conditions, and weather was not considered a factor in this occurrence.
Previous CL-415 unintentional gear-up landing on runway
On 03 April 2009, a CL-415 aircraft operated by the Service aérien gouvernemental du Québec (registration C-GQBG, serial number 2022) was conducting a flapless landing as part of a training flight and landed with the gear retracted at Québec/Jean Lesage International Airport (CYQB), Quebec. The occurrence summaryFootnote 3 noted that the landing gear aural warning did not activate because the throttle settings were higher than the activation threshold of the warning system given the power requirements for a flapless approach.
CL-415 landing gear warning and indication system
As an amphibious aircraft, the CL-415 is equipped with a landing gear indicating and warning system to provide warnings and indications for landings on both land and water. There is a LAND/SEA switch that must be set to match the intended landing surface to ensure that the landing gear aural warning operates correctly.
When the LAND/SEA switch is in the LAND position, the landing gear aural warning activates if the landing gear is not extended with flaps set at 15 or greater, or if the throttles are positioned less than half an inch above the idle stops.Footnote 4 Given the power requirements of a flapless approach,Footnote 5 the throttles typically remain above that position until they are retarded during the landing flare or following touchdown.
The LAND/SEA switch was in the appropriate position (LAND) during this occurrence. The landing gear aural warning system was examined following the occurrence and was found to be operating within the limits prescribed by the maintenance manual.
The airplane flight manual (AFM) includes a caution regarding abnormal procedures that states the following:
When landing with less than 15° of flaps, depending on profile and power required during approach, the landing gear aural warning may not be available to warn the pilots of improper gear configuration. Confirm proper selection of LAND/SEA switch and gear position before landing.Footnote 6
After this caution was added to the AFM in 2015, it was also added to the manufacturer’s pilot checklist (PCL) in 2016.Footnote 7 However, it was not replicated in the OMNRF CL-415 Checklist,Footnote 8 a document created by the OMNRF to replace the PCL.Footnote 9
Both occurrence pilots were, however, made aware of this caution when it was reviewed during their recurrent ground school in March 2021; they also discussed it during the pre-flight briefing for the occurrence flight.
Operational checklist procedures
During a flight, OMNRF flight crews use the OMNR CL415 Operational Checklist, a single-page (front and back) laminated checklist.Footnote 10 All items on the operational checklist are normal procedure items copied from the OMNRF CL-415 Checklist; the operational checklist is intended to be used during every flight, from start-up to shutdown, and covers normal operations on both land and water, including water bombing operations.
Each section of the operational checklist contains a 2-letter code in parentheses that corresponds to a checklist type, based on how the checklist is to be completed. The 4 checklist types are as follows:
- CR – Challenge and Response
- RD – Read Aloud and Do
- SD – Silently Do
- VA – Vital Action

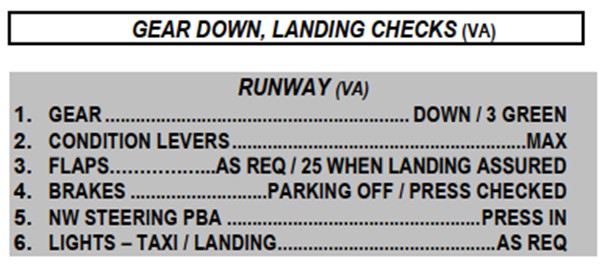

The CR, RD, and SD checklist types are described in detail in the OMNRF CL-415 SOP—CL-415 Standard Operating Procedures (SOPs), including specific examples detailing each crew member’s role while actioning those checklists;Footnote 11 however, the SOPs do not refer specifically to the OMNRF CL-415 Checklist. Although there is no similar description of the VA checklist type,Footnote 12 vital action is described in the SOPs as “[c]hecks and drills that are committed to memory.”Footnote 13 The GEAR DOWN, LANDING CHECKS checklist in the operational checklist (Figure 2) is labelled as vital action.
The Landing Checks section in the SOPs includes the following statement: “[a]s this check may be done during an especially high workload period it can be carried out from memory and verified with the checklist.”Footnote 14 There is no mention of the type of checklist completion that is intended to be used during this verification (CR, RD, or SD).
In an advisory circular published in 2017, the U.S. Federal Aviation Administration describes the manner of checklist completion commonly known as a “flow” as follows:
For most normal procedures on the flight deck, a “flow” is conducted as a sequence of actions done from memory to configure the aircraft and its systems. The flow is followed by a checklist containing a subset of items from the flow that may be the most critical items within that flow and items that confirm the flow was done correctly.Footnote 15
Both OMNRF SOP guidance for completing the GEAR DOWN, LANDING CHECKS checklist and the actual practice reported by pilots for completing the VA checklists are consistent with the “flow” method of checklist completion described above.
The SOPs state that “[v]ital action (memory) items require confirmation by the second flight crew member.”Footnote 16 This statement seems to apply only to memory items found in the SOPs’ abnormal or emergency procedures. The requirement to confirm vital action items by a second crew member does not appear to apply to the GEAR DOWN, LANDING CHECKS checklist, and it is not required, nor typical, during normal operations at OMNRF.
Confirming the landing gear extension
The SOPs provide guidance on crew actions with respect to landing gear extension. One specific scenario is detailed as follows:
To initiate the extension of the landing gear when it is inappropriate to complete the Landing Check, the PF calls "Gear Down". The PM responds by selecting the Landing Gear Lever down and saying, "Gear Down". Once the Landing Gear is down and locked the PM should call "Gear Down Three Green” [emphasis in original].Footnote 17
Note that this procedure does not require confirmation of the gear position by the PF. The SOPs do not expand on the procedure to be used when extending the landing gear as part of the GEAR DOWN, LANDING CHECKS checklist, nor does it offer an example.
The SOPs also provide guidance on the final landing check:
The Final Landing Check is not specifically listed on the checklist and is a continuation/last look of the LANDING CHECK. When the PF calls for “Flap 25” the PM will select flaps to 25 and when set call “Flap 25 Indicating” and confirm that the landing gear is down “Landing Gear down and Indicating” [emphasis in original].Footnote 18
The cue for this check is the Flap 25 callout made by the PF, and it is therefore unlikely that the PM would initiate this check during a flapless approach because there would be no call for Flap 25 to trigger the initiation of this check.
No definition of a “continuation/last look” checklist type or procedure is included in the SOPs, and the final landing check outlined above does not appear on the OMNR CL415 Operational Checklist.
Crew resource management during airborne training
In a multi-crew aircraft such as the CL-415, pilots must successfully interact with each other, their aircraft, and their environment, using associated checklists and company SOPs to effectively manage threats, errors, or undesired aircraft states that may be encountered.
Airborne training flights can present challenging situations from the perspective of crew resource management for a few reasons, including but not limited to the following:
- The pilot-in-commandFootnote 19 may be delivering verbal instruction during critical phases of flight, a practice that can interrupt the flow of normal crew communication and coordination.
- The flights may consist of manoeuvres and scenarios that do not occur as part of daily operations and are not detailed in the SOPs.
- When the pilot-in-command is directing the flight path (for example, “Let’s extend the downwind” or “Turn your base now”), the trainee is physically flying the aircraft, but there is potential for confusion regarding who is actually in control of the flight path and who is responsible for initiating checklists.
In this occurrence, the flapless landing was being conducted as a handling exercise, rather than being treated as simulated malfunction.Footnote 20 Neither the AFM nor the SOPs provide procedures or checklists specific to a flapless approach and landing. This absence of guidance means that any flapless approach and landing is effectively an abnormal procedure.
Air operators who use 2-crew aircraft should ensure that their company SOPs clearly define how checklists are intended to be actioned and that items affecting aircraft configuration are confirmed and verified.
Flight crews are reminded to exercise additional vigilance during airborne training flights, given the significant potential for distraction from normal cockpit duties while instruction is taking place.
This report concludes the Transportation Safety Board of Canada’s investigation into this occurrence. The Board authorized the release of this report on . It was officially released on .
