Backgrounder (R19W0002)

TSB Rail Transportation Safety Investigation R19W0002 Train collision near Portage la Prairie, Manitoba in January 2019

Railway terminology

Railway signal indications: Signal indications are lights displayed beside or over the tracks that indicate to train crews how to proceed. Similar to traffic lights that govern the operation of roadway vehicle traffic, in signalled territory, a progression of wayside railway signal indications govern train movements on railway tracks.

Following signal indications: The safe operation of a train is a responsibility shared between a locomotive engineer and a conductor. Each train crew member is trained to recognize and understand all signal indications that they may encounter, as specified in the Canadian Railway Operating Rules (CROR). Crew members are also expected to know the territory that they operate in, including the location of individual signals. When operating a train in signalled territory, train crews are required to follow the progression of signal indications displayed in the field and operate the train accordingly.

Train crews must communicate all signal indications observed in the field to those within hearing distance within the locomotive cab, and take appropriate action to comply with the signal indication displayed. According to CROR Rule 34, if there is uncertainty, the crew must take immediate action to ensure the safety of the movement, including stopping it in emergency, if required.

Table 1. Signal aspects and associated CROR rules relevant to this occurrence (Source of diagrams and alternative text: Canadian Rail Operating Rules, General Description and Location of Fixed Signals)
Signal aspects displayed CROR rules

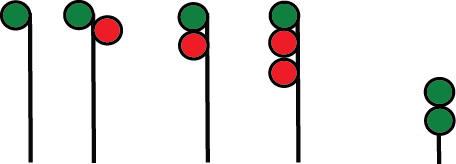

1. A high mast, single aspect signal displaying green.
2. A high mast, staggered, double aspect signal displaying green on the top, red on the bottom.
3. A high mast, inline , double aspect signal, displaying green on the top, red on the bottom.
4. A high mast, inline, triple aspect signal, displaying green on the top, red in the middle, red on the bottom.
5. A double aspect, dwarf signal, displaying green on the top, green on the bottom.

Rule 405—Clear Signal—Proceed (at track speed)

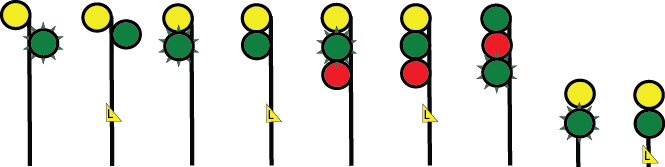

1. A high mast, staggered, double aspect signal displaying yellow on the top, flashing green on the bottom.
2. A high mast, staggered, double aspect signal displaying yellow on the top, green on the bottom with an ‘L’ plate on the mast.
3. A high mast, inline, double aspect signal displaying yellow on the top, flashing green on the bottom.
4. A high mast, inline, double aspect signal displaying yellow on the top, flashing green on the bottom with an ‘L’ plate on the mast.
5. A high mast, inline triple aspect signal displaying yellow on the top, flashing green in the middle, red on the bottom.
6. A high mast, inline triple aspect signal displaying yellow on the top, flashing green in the middle, red on the bottom with an ‘L’ plate on the mast.
7. A high mast, inline triple aspect signal displaying green on the top, red in the middle, flashing green on the bottom.
8. A double aspect, dwarf signal, displaying yellow on the top, flashing green on the bottom.
9. A double aspect, dwarf signal, displaying yellow on the top, green on the bottom with an ‘L’ plate on the mast.

Rule 406—Clear to Limited—Proceed, approaching next signal at limited speed (not exceeding 45 mph)

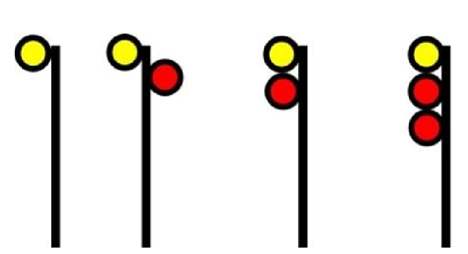

1. A high mast, single aspect signal displaying yellow.
2. A high mast, staggered, double aspect signal displaying yellow on the top, red on the bottom.
3. A high mast, inline, double aspect signal displaying yellow on the top, red on the bottom.
4. A high mast, inline, triple aspect signal displaying yellow on the top, red on the middle, red on the bottom.

Rule 411—Clear to Stop—Proceed, preparing to stop at next signal

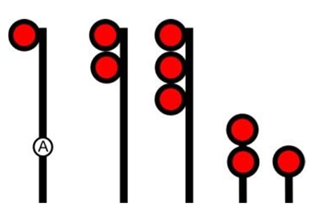

1. A high mast, single aspect signal displaying red with an ‘A’ plate on the mast.
2. A high mast, inline, double aspect signal displaying red on the top, red on the bottom.
3. A high mast, inline, triple aspect signal displaying red on the top, red in the middle, red on the bottom.
4. A double aspect, dwarf signal displaying red on the top, red on the bottom.
5. A single aspect dwarf signal displaying red.

Rule 439—Stop—Unless required to clear a switch, crossing, controlled location, or spotting passenger equipment on station platform, a movement not authorized by Rule 564 must stop at least 300 feet in advance of the Stop signal.

Enhanced train control: is a system that automatically intervenes to slow or stop a train in the event that the operating crew does not respond appropriately to a signal displayed in the field. A fully functioning enhanced train control system would prevent train-to-train collisions, overspeed derailments, incursions into work zones, and movement of a train through a switch left in the wrong position. It would also offer a physical fail-safe defence against operating crew errors that are influenced by fatigue or other factors.

Key routeFootnote 1: is any track which, over a period of one year, has carried 10,000 or more loaded tank cars or loaded intermodal portable tanks containing dangerous goods.
Key trainFootnote 2: an engine with cars that includes:

  • 1 or more loaded tank cars of Toxic Gases (Class 2.3) that are toxic by inhalation  subject to Special Provision 23 of the Transportation of Dangerous Goods Regulations; or
  • 20 or more loaded tank cars or loaded intermodal portable tanks, or any combination, containing dangerous goods.

Trip Optimizer (TO): A system that functions similarly to a car’s cruise control system which integrates global positioning system (GPS) information, track profile information and train characteristics. TO is activated and operated by the locomotive engineer (LE) using the Smart Display Integrated System (SDIS) display screen and the screen soft keys. Once activated, TO automatically maintains the train’s speed with minimal throttle manipulation and controls dynamic braking functions. The LE monitors the TO SDIS screen in order to ensure the train’s safe operation and to resume manual control when required.

The implementation of TO is an industry initiative and not a regulatory requirement. The use of TO reduces the potential for train crew errors while maximizing fuel conservation. The system assumes all signals are “Clear” and does not recognize or respond to any signal indications.
